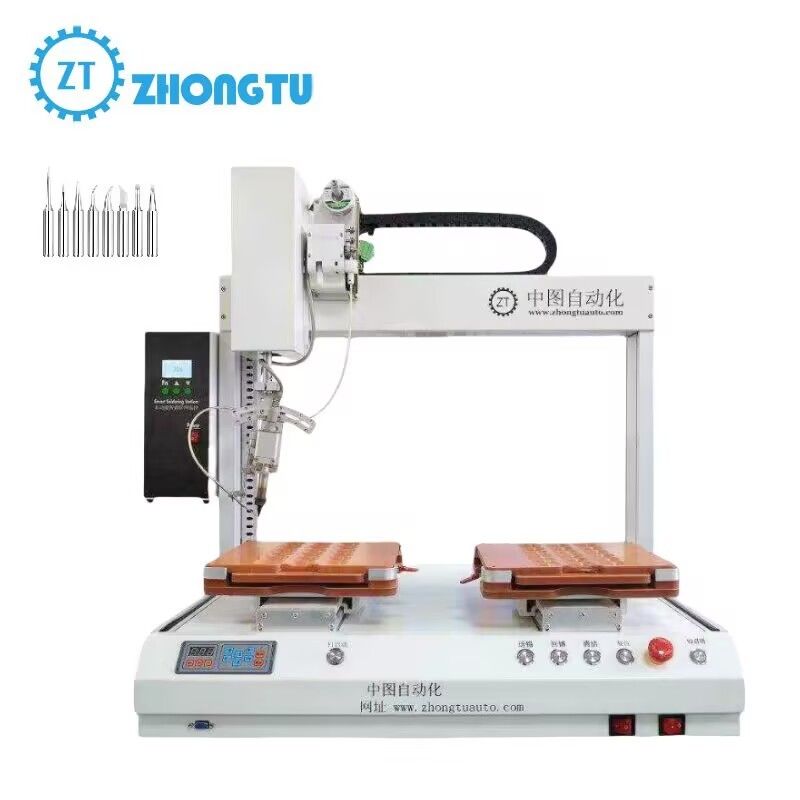

High-Efficiency Automatic Soldering Machine Has Strong Adaptability To Various Environments

Name: High-Efficiency Automatic Soldering Machine Has Strong Adaptability To Various Environments
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ441-R
Price: 3,300.00 USD
Availability: InStock

Szczegóły produktu

Place of Origin: China

Nazwa handlowa: ZT

Orzecznictwo: CE, ISO, RoHS

Model Number: ZT-HXJ441-R

Warunki płatności i wysyłki

Minimum Order Quantity: 1 SET

Cena: USD 3100-3500/SET

Packaging Details: Wooden box

Delivery Time: 15-30 Day

Payment Terms: T/T

Supply Ability: 100SET/Month

Najlepszą cenę

Szczegóły produktu

Opis produktu

Szczegóły produktu

Podkreślić:
                                                                                                                                                                                                                                                                                                                                                                                Strong Adaptability Automatic Soldering Machine, High Efficiency Automatic Soldering Machine, Various Environments Automatic Soldering Machine


Repeatability Accuracy:	±0.02mm	Power Supply:	AC 220V/50Hz
Feeder Type:	Vibration	Editing Mode:	Teaching Pendant
Soldering Iron Cooling Time:	Less than 30 seconds	Color:	White
Solder Robert:	soldering robert for PCB	Transport Package:	Wooden Box
Soldering Smoke Absorber:	Optional	Soldering Iron Heating Element:	Ceramic

Repeatability Accuracy:	±0.02mm
Power Supply:	AC 220V/50Hz
Feeder Type:	Vibration
Editing Mode:	Teaching Pendant
Soldering Iron Cooling Time:	Less than 30 seconds
Color:	White
Solder Robert:	soldering robert for PCB
Transport Package:	Wooden Box
Soldering Smoke Absorber:	Optional
Soldering Iron Heating Element:	Ceramic

Opis produktu

High-Efficiency Automatic Soldering Machine Has Strong Adaptability To Various Environments

Product Advantages

Diffusion Principle: As wetting progresses, the metal atoms of the solder and the base metal start to diffuse with each other. Usually, once the temperature rises, the atoms are in a state of thermal vibration within the crystal lattice. The activity of the atoms intensifies, causing the atoms in the molten solder to cross the contact surface and enter the crystal lattice of the other metal. The speed and number of atomic movements are determined by the heating temperature and time. This can be clearly observed during the welding process, such as the phenomenon where tin wire melts and flows out.
Principle of metallurgical bonding: Due to the mutual diffusion between the solder and the base metal, an intermediate layer - a metal compound - is formed between the two metals. To achieve a good solder joint, a metal compound must be formed between the base material to be welded and the solder. This enables the base metal to reach a firm metallurgical bonding state. It is like steelmaking, where various metals are melted and connected together.

Product Parameter

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen, China
Applicable Industries:	Manufacturing Plant, SMT , DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	65Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	850750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Detail Photos:

High-Efficiency Automatic Soldering Machine Has Strong Adaptability To Various Environments 0

High-Efficiency Automatic Soldering Machine Has Strong Adaptability To Various Environments 1

High-Efficiency Automatic Soldering Machine Has Strong Adaptability To Various Environments 2

High-Efficiency Automatic Soldering Machine Has Strong Adaptability To Various Environments 3

Our advantage

1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve informatization level.

5.Improve product yield.

6.Provide Customers With the Most Advanced

System Solutions for Automation Equipment.

Our Services:

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers.	1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
